EOT Cranes
| Types of EOT | Single, Double Girder |
| Capacity | 5- 500 tons |
| Span in Meters | 9-35 |
| Hook mm L1 | 900-1400 |
| Hoisting Speed | 5m/min – 70m/min |
| Wheels | Forged Steel, Hardened |
| End Carriages | Rigid Box Type |
| Control | Pendant Control / Cabin Control |
| Color | Golden Yellow |
| Maker | APR Cranes |
EOT Cranes Manufacturers in India
APR Cranes is eot cranes manufacturers, suppliers, and exporters in India. APR Cranes test the industrial girder cranes at many stages before the final delivery to respective industries. Moreover, eot cranes full form is Electric Overhead Travelling also known as overhead cranes. EOT cranes comes in the forms of single girder eot cranes, and double girder eot cranes. EOT Cranes operates to handle the bulk material and move efficiently from one place to another place over industrial crane girder.
APR Cranes engineering, and development process makes the stronger, durable, and easy to understand functions, features of the eot cranes. We has been delivered the eot cranes to respective industries includes steel, gas, cement, mines, foundries, chemical plants, sugar mills, and waste handling plants, and municipal waste handling plants. First, we understand the customers requirements such as material, space, capacity etc. and delivers the customized cranes. APR Cranes is eot crane company in India, and manufacture the manual eot cranes, semi-automatic cranes, and fully automatic cranes on industries demand. We make the simple eot cranes prospective that helps the industries to choose the right cranes for industrial lifting equipment.
EOT Cranes Technical Specifications
EOT Cranes or Overhead Cranes designed to work in industries like steel, cement, and foundries to lift, and move heavy loads. APR Cranes is eot cranes manufacturers, and delivers versatile customized cranes solutions to industries for better productivity from load capacity Up to 100 tons. EOT Cranes features, and specifications depend upon the requirements of customers. In case of manual eot cranes, operator of the cranes sit over the bridge crane in the cabin ,and manually keep the eyes on every activity of the cranes includes hoisting speed, cross travel speed, and long travel speed etc. In case of semi automatic cranes is combined of manual, and automated cranes offers operators control and assistance. Fully automatic cranes runs automatically, and designed to work in 24/7 harsh environment. APR Cranes inspect the every elements of the eot cranes from load capacity, span height, hoist, limit switches, load indicators, overload protections, anti-sway system, stop button, pendant control, radio remote control, cabin control, structure, and designs, duty cycle and power supply etc. APR Cranes is ready to work in any kind of environments with explosion proof specifications for chemicals, and refineries planes. We customized cranes for the steel plant equipped with high temperature resistance components, follow and ensure the eot technical details to deliver the result-orientated goals.
Types of EOT Cranes
We offers all types of product features EOT Cranes for industrial lifting equipment. A dedicated team of engineers understand the industries requirements and produce the electric overhead travelling cranes indigenously after research, and development.
Single Girder EOT Cranes
Single Girder EOT Cranes usually designed to lift light weight from 1ton, 2ton, 3ton, 4ton, and 5upto, and help to lift the material in warehouses, machine shops, and small scale industries. APR Cranes designs the cost effective, and easy to operate cranes with high quality components includes main girder, end carriages, hoist trolley, hoist mechanism, electrical control panel, runway beams etc. It runs over the single beam, or girder at maximum span heights in meters.
Double Girder EOT Cranes
Double Girder EOT Cranes designed to lift heavy duty material upto 100 ton over the two girder, or bridge. APR Cranes designed the double girder eot cranes to enhance the stability, and lift the more material. APR designed it with high quality material, safety features, remote control, and fully equipped operation. Our cranes not only lift the material but lift the industries performance also. APR offers smart eot cranes in three variants includes manual, semi, and fully automatic eot cranes for efficient running.
Underslung Cranes
Underslung Cranes also known as space saving cranes to work in limited space in the workshop. When the space, and headroom is limited then APR Underslung Cranes performance there to lift the bulk material upto 18 ton. APR Cranes offers versatile single girder underslung cranes, and double girder underslung cranes. It works in the limited headroom, and lift the maximum tons of material in manufacturing plants. More clearance, more floor space utilizations, and APR offers the customized cranes.
Parts of EOT Cranes
APR Cranes is reliable manufacturers of Long Travel EOT Cranes that runs over the span bridge with the supports. Every part of eot cranes setup and install after highly research, and development. Every minor to major parts of electric overhead traveling cranes setup, and installed after multiple experimentation in the workshop includes hoist, Trolley, Bridge, End Carriages, Columns, Runway, Electrical Control Panel, Pendant Control, Limit Switches, DSL busbars, radio remote control, and Emergency Stop.
Hoist
Major part of eot cranes is hoist designed by APR Cranes to lift heavy duty applications with 8 rope. It is designed with consists of several components hoisting motors, drum, Gearbox, Brake, Rope or Chain, Hook or Grab, and Rope Guide. APR offers various types of hoists in the form of chain hoist, wire rope hoist, electric wire rope hoist, hydraulic hoist, and pneumatic hoist.

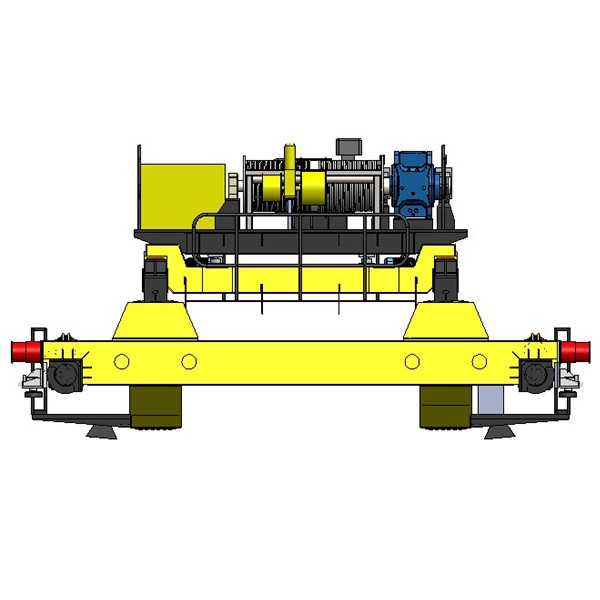

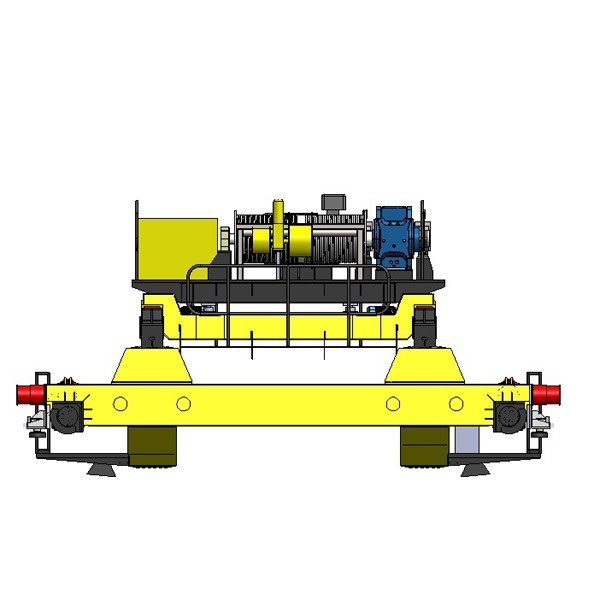

Trolley
Trolley plays an important role for eot cranes that supports the hoists and move the heavy duty objects. Its frame, wheels, and drive mechanism helps the smooth movements. Also, CT Festoon Trolley Fitting, and CT Trolley Rail Designs as per lifting loads, length, and bay.
Bridge
One of the most important also known as backbone of the long eot cranes is travelling bridge in the forms of single and double girder to enhance the strength , and stability of eot cranes to improve the productivity.
End Carriages
Like other parts of eot cranes, End Carriages is setup both side of the bridge to improve the drive mechanism, and hold the electric motors.
Columns
When eot crane is not supported by any constructed building or wall then column used there to maintains the space, headroom as well as frequency.
Runway
It helps to move the overhead crane smoothly and move along with the cranes to strengthen it.
Electrical Control Panel
It is a steel box control the entire cranes operation and fully equipped with braking, VFDs , motor speed, contactors , direction, fuses, and switches. It the major part of the bridge crane, and functions the electrical movement in the entire crane. Electric Functions like LT, CT, Main supply, pp panel, radio remote control to operate the eot cranes required to improve the safe operations.
Pendant Control
Pendant used by the operator in the manual cranes, and enables wired control.
Limit Switches
In modern cranes limit switches used to fix the crane speed.
DSL busbars
DSL(Down Shop Lead) busbars is a components to supply the electricity in eot cranes, and designed to handle the high voltages of electricity.
Radio Remote Control

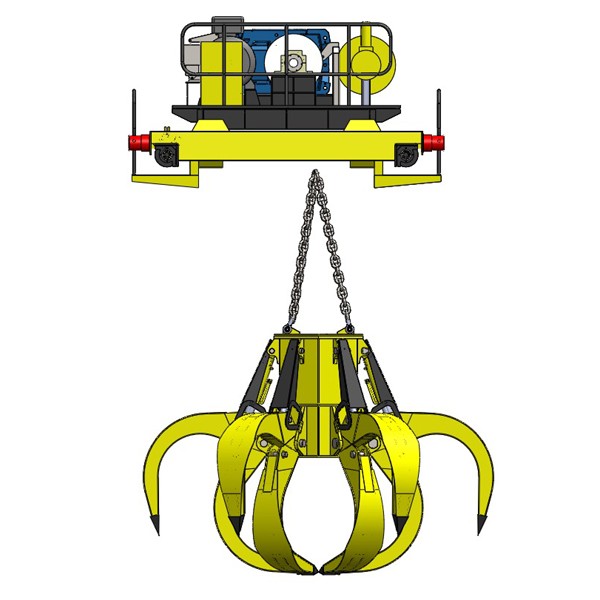

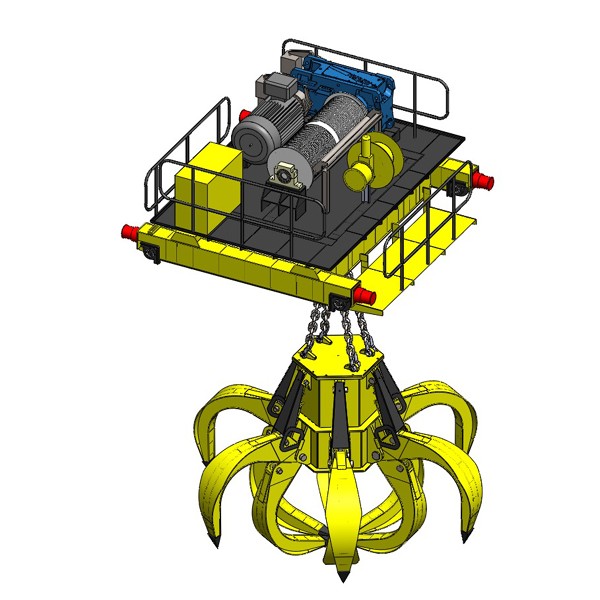

APR offers fully automatic overhead grabs cranes with smart features, and enable to functions cranes with Radio Remote Control.
Emergency Stop
We provide safety stop button in the cranes to prevent any injuries during operations.
EOT Cranes Features
APR Cranes inspect the every elements of the eot cranes from load capacity, span height, hoist, limit switches, load indicators, overload protections, anti-sway system, stop button, pendant control, radio remote control, cabin control, structure, and designs, duty cycle and power supply etc. APR Cranes is ready to work in any kind of environments with explosion proof specifications for chemicals, and refineries planes.
- APR Cranes designs the EOT Cranes as per IS 800, IS 3177, and IS 4137.
- Functions with low dead weight to reduce cost, and improve the productions.
- Inspect the industries workflow, and adjust in the minimum headroom to reduce the building cost.
- Key components used in EOT Cranes like forged wheels for durability.
- High quality steel used in cranes to improve the operation efficiency.

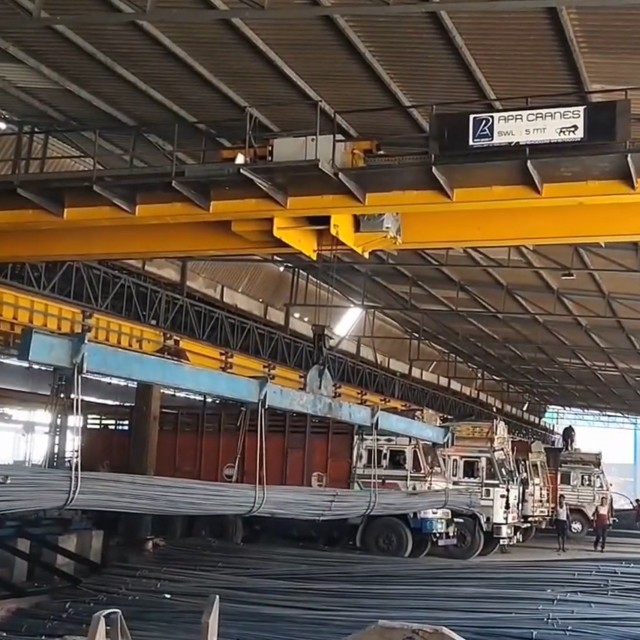

EOT Cranes Images (Gallery)
Frequently Asked Question
Q: How to find top EOT Cranes Manufacturers in India?
Ans: First know your requirements, then get the quotations from several eot cranes manufacturers. APR Cranes manufacturing eot cranes since 2010, and delivered high quality result oriented cranes to all kind of industries nature. APR offers after sale services, cost effective cranes, and customized cranes that helps to make a powerful impact in the market with powerful overhead cranes.
Q: What is the load capacity of EOT Cranes?
Ans: EOT Cranes offer different- different capacity, and specifications to industries. In case of single girder EOT Cranes is offers upto 10 tons capacity. While, double girder eot cranes is capable to lift upto 100 tons of loads.
Q: How many types of EOT Cranes are there?
Ans: There are many types of eot cranes operating in industries, and each crane is designed for specific applications. Moreover, eot cranes includes single girder eot cranes, double girder eot cranes, gantry cranes, goliath cranes, JIB cranes, Underslung Cranes, Overhead Cranes etc.
Q: What industries use EOT Cranes?
Ans: EOT Cranes uses from small scale industries to large scale industries to handle heavy duty material. We offers Eot cranes for steel plant, power plants, shipyards, mining, constructions, railyards, foundries, cement, logistics, scale, chemical, and manufacturing plants.
Q: What are the key components of an EOT Crane?
Ans: There are many parts of cranes makes a fully functional eot cranes , APR Cranes use the high-quality crane components to enhance the durability of the bridge cranes includes bridge, trolley, hoist, end trucks, runway, control system, safety features etc.
Q: Are Your EOT cranes customizable?
Ans: Yes, APR Cranes designed the eot cranes as per the industries requirements, customize features, capacity, span, lifting heights, speed requirements, control system, etc.
Q: Where do APR Cranes deliver their products?
Ans: Generally, APR Cranes suppliers the eot cranes across India, and globally as per order it includes major cities Pune, Chennai, Punjab, Surat, Raigarh, Chhattisgarh, Bhilai, Mumbai, Delhi, Bangalore, Ahmedabad, Kolkata etc.
